THE NEXTSYSTEM → Critical Care

Modular and flexible THE NEXTSYSTEM allows an optimum combination of the equipment essential for critical care. Dedicated to specialist departments and organised with a vast choice of customised elements (bases, wall cabinets and columns) responding to the needs of medical staff. The various elements are integrated, by size and choice of materials, with the structure and Headwall panels. The design allows for future implementations.
An adequate initial design allows for ulterior implementation in a future date, and in relation to the needs, the configuration of the headwall.

Video The Nextsystem

Ergonomics

1. PATIENT AREA
Characterised, by the particular attention paid to the positioning of services in the patient area. To avoid difficulties the devices are positioned latterly to the bed, at a height comfortable for the medical staff.

2. CLINICAL AREA
The accessibility and disposition of the utilities allows maximum visibility and ergonomics. All switches and plugs are connected inside the ergonomic area for ease of use by the health care staff.
2a. Modules for primary clinical services for patient care: medical gas outlets, electric outlets, data ports, accessories bars, monitor support.
2b. Modules with additional services dedicated to patient care: accessories for medical devices.

3. MEDICAL STAFF AREA
Modules fitted with additional services for medical personnel, computers, gel dispensers, boxes for gloves, waste container.

Structure and cladding

THE NEXTSYSTEM is distinguished by the choice of materials used and for the innovative geometrical configuration that makes the product fully antibacterial. The panels are equipped, along the horizontal junction, with an overlapping wedge-shaped profile that prevents the penetration of liquids in non-visible areas, preventing the spread of bacteria. The vertical joints are fitted with an anti-bacterial silicone sealing trim “PLATINIC PE 3621” which satisfies all necessary requirements.
Additives in the form of silver ions neutralize the growth of microbes, bacteria and mold.
The antibacterial materials are long lasting as the ions present within the compound are released progressively. The flatness of the surface guarantees absolute washability.

criticalcare(2)

Strengths

A wide variety of clinical accessories available;
Organisation and functionality of equipment essential to patient care;
Wall ergonomics with flexibility for anchoring accessories;
Ease of use;
Optimisation in patient care assistance;
Reduced set-up time;
Inserting the monitor where necessary, on the double horizontal and vertical channels;
Placement of equipment and medical devices at the necessary heights without affecting the masonry wall.

Prevention

The medical staff module is dedicated to sanitization composed of a single compartment which in turn has two sub-compartments, one for gloves and the other for detergents. The unit has a surface for resting objects, a compartment for waste with an integrated electronic opening.
The equipment allows you to perform all sanitizing operations necessary to avoid contact with surfaces in accordance to OMS regulations.
The sanitization module is installed with touch-less technology, including an electronic dispenser for sanitizing detergent.

The World Health Organization, for the prevention of infections, recommends the following hand hygiene to medical personnel.
Sanitize:
1. before contact with the patient;
2. before an antiseptic task;
3. after exposure to bodily fluids;
4. after contact with the patient;
5. after contact with elements in the vicinity of the patient.

THE NEXTSYSTEM → Specialist Headwall and Casework

Dedicated to specialist departments, THE NEXTSYSTEM amplifies the potential of the system.
The hospital modules are equipped with elements that are customisable for Headwall and Workcase configurations functional at critical areas, specialist units, emergency wards.
New ergonomic and rational compositions respond functionally to the needs of doctors and
healthcare personnel, for emergency management and safety at work. The sanitization module guarantees the security needs.

Ergonomics

1. PATIENT AREA
Careful attention was paid in the design phase to the position of the apparatus in the special headwall. The apparatus are placed laterally and at a comfortable height for the medical staff to gain access.

2. CLINICAL AREA
The clinical equipment is positioned to allow good visibility and ergonomics. Sockets, switches and devices are placed inside the ergonomic flow area for ease of use for the medical staff.
2a The modules are equipped with primary clinical services for patient care (medical gas outlets, electrical outlets, data ports, accessory bar and the monitor support).
2b Modules with additional services dedicated to patient care and accessories for medical devices.

Structure

The structure rests on a leveling base consisting of three 12/10 THK galvanised steel profiles coupled together in a telescopic structure with an integrated leveling device complete with adjusting feet. Thanks to the particular construction, the mounting is easy.
The frame module is made of a 12/10 THK galvanised steel structure (mullions and transoms). The precise geometry ensures easy maintenance and implementation of the system. The profile is arranged for the easy snap installation of the cladding.
The geometry guarantees ease in all the operations from maintenance to implementation of the system.
It is possible to install structural reinforcements onto the substructure.
Implementable technological devices.
Modules are supplied mounted and complete with accessories.

head&case(2)

SIDE ABS
Internal ABS side trays injected mold polymer (60x40cm), available in three heights. Compliant with International Standard ISO 3394, 1984.

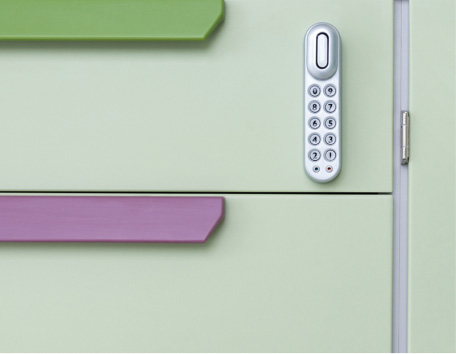

ELECTRONIC LOCK
Equipped with LED lighting: blue light acceptance, red light error message.

DISPENSER
A soap and sanitiser dispenser combines design and technology perfectly integrating the full range of THE NEXTSYSTEM. It is a touchless dispensing pump.

ELECTRONIC TAPS
Rounded and compact shape designed for easy cleaning. A photocell system allows the flow of water. A lever is equipped in case of failure or electrical problems rendering it always useful.

THE NEXTSYSTEM → Materials, Colours and Lighting

Wood, Corian, Glass, HPL.
In the identification of the materials nothing is left to chance.
The woods used in the furnishings are designed to create a warm familiar atmosphere. The patient is immersed in a feeling of well-being.
Corian , glass , HPL meet the needs of the newly developed health centers, more and more safety-oriented.
In environments the lighting is essential. The quality of light affects the well-being of the patient and facilitates health care.
Ambient lighting, reading light, night light, the vast selection guarantees the different needs.

MATERIALS

Corian Panels

The DuPont™ Corian® is a composite of advanced minerals and natural acrylic resins, primarily in tri-hydrate aluminum. The material is inert, hypoallergenic, non-toxic and possesses inherent flame retardant properties, adequate for the fight against unknown infections. It is hygienic and complies with the demanding requirements of the healthcare environment.
The performance of DuPont ™ Corian® has also been certified by the Independent German organization LG + A QualiTest GmbH. Rigorous tests comparing fungus and bacteria and the ease of cleaning has rendered the product highly superior to those normally used in healthcare.
It is hygienically certified under International Standard DIN EN ISO 846.

Glass Panels

Glass is a natural, environmentally friendly material, it has a smooth surface that is easy to clean and is resistant to chemicals, disinfectants and the aggressive detergents used in hospitals.
Properly treated, it is scratch resistant, shockproof, anti-abrasive, and compared to other materials, it best preserves its aesthetic appearance against chemical and mechanical treatments, and more-over, it is completely recyclable. THE NEXTSYSTEM wall is coated in a glass plate combined with a galvanized sheet 10/10 thick as a support panel. The glass is tempered ensuring absolute safety, ESG 8mm thick, with the underlying surface screen printed or painted to achieve the desired colour.

HPL Compact Panel

Highly hygienic and antimicrobial
The 12mm THK compact HPL laminated panels have a high density (≥ 1, 35 g/cm3) and boast exceptional characteristics in mechanical, physical and chemical resistance.
They are easy to work with and require minimum maintenance.
The panels consist of layers of cellulose fibre impregnated with thermosetting resins. The layers are bonded together by simultaneously applying heat (140/150°C) and pressure for a predetermined time depending on the type of lamination. This creates a material that is stable, homogeneous, non-porous, and highly dense, with physical and chemical characteristics completely different to its original components, giving exceptional resistance to scratching, shock, abrasive chemicals and heat.
It is highly hygienic and antibacterial. Treated with Sanitized®, makes it suitable for applications in hospital environments.

HPL Light Panels

The HPL light panel is a composite panel, composed of three layers of materials. The internal support in MDF and two layers of HPL 1mm THK, develop an overall thickness of 12mm.
The performance of the HPL light panel is almost equivalent to the HPL compact panel, in terms of mechanical, physical and chemical resistance, and for the ease of cleaning of the outer surface. This panel can also be treated with the antibacterial Sanitized® silver phosphate technology. The inner part of the panels are fitted with vertical racks of galvanized steel sheets 10/10 THK which are then fixed to the panel with EURO screws.
It is mounted to the structure by a movement from top to bottom on hooks. The special pin holes give the panel a self-centering movement.

COLOURS

Headwall e Wallsystem

The available range is vast.
The nuances are oriented along all the shades of gray for the clinical area, the range of blue and green for the patient area, up to more assertive green, earth and eggplant in family brushstrokes. accessories are also characterized by the color, which becomes in this way a real connotative system of the space and indicative of the devices .

Specialist Headwall and Casework

Here the color range essentializes and acquires above all a firm tone.
Although obvious, the contrasts contribute to the light and harmony of the space.
The clinical area is characterized by sea-grass, the patient area by blooming greens.
The accessories range from chic aubergine to the blooming green and to citrus orange.
The coating is very clear, white pepper.

Critical care

The available pantone colour chart allows a vast choice, characterizing the environment with shades of orange, purple and blue.
Ethereal azure for the clinical area, chic aubergine for the patient area, blue diamond for the staff area, from the grand brown to chic aubergine to citrus orange for accessories.
The coating is optionally white pepper or douches.
The colour designs the space and indicates the accessories.
In the ideal room of critical care the healthcare personnel operates in an environment, warm, bright and alive.

LIGHTING

Dedicated domotic system

The basic configuration contemplates for the ambient, ceiling lighting, wall lighting for reading and emergency lighting placed in proximity to the bed.
Also provided is an integrated indirect light placed above the equipped wall and LED RGB illumination for chromo-therapy to improve the comfort and overall quality of the room.
A LED spot light is situated near the patient and facilitates illumination for reading or for conversation. A dedicated home automation system allows the management of the light by Touch control NAVILUX® with capacitive technology and with an acoustic and visual feedback. Glass pushbutton control with touch control technology.
The ambient light is customized through the use of default settings.

Patient Room

Hospitalization area. Wide range of modules.

Critical Care

For specialized departments. A wide range of customizable elements.

Exclusive Suite

The new concept dedicated to hospital stay. Versatility and flexibility.
